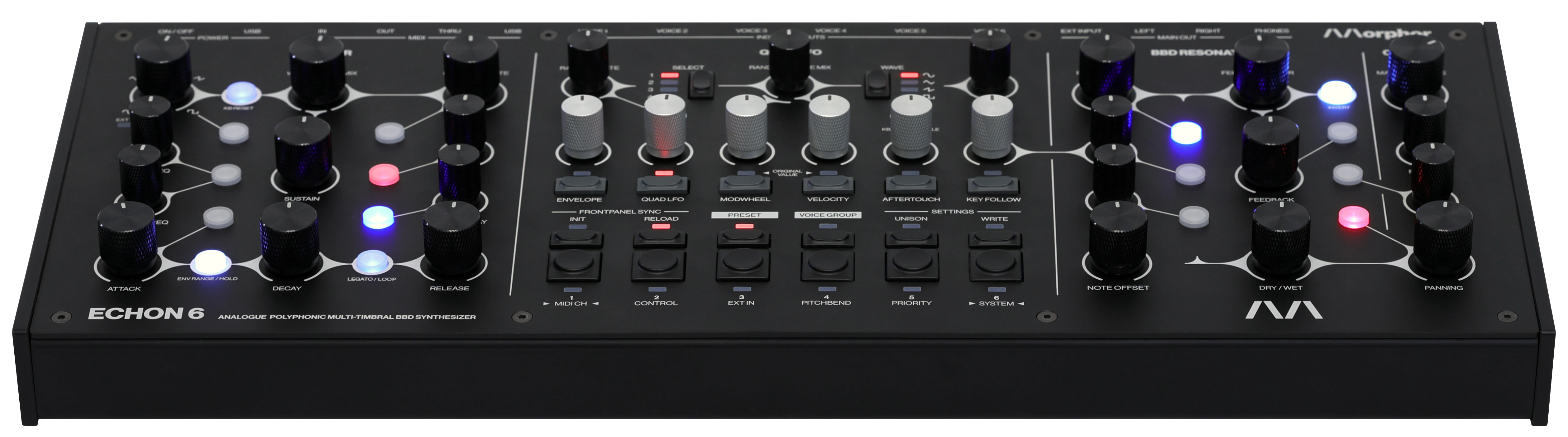

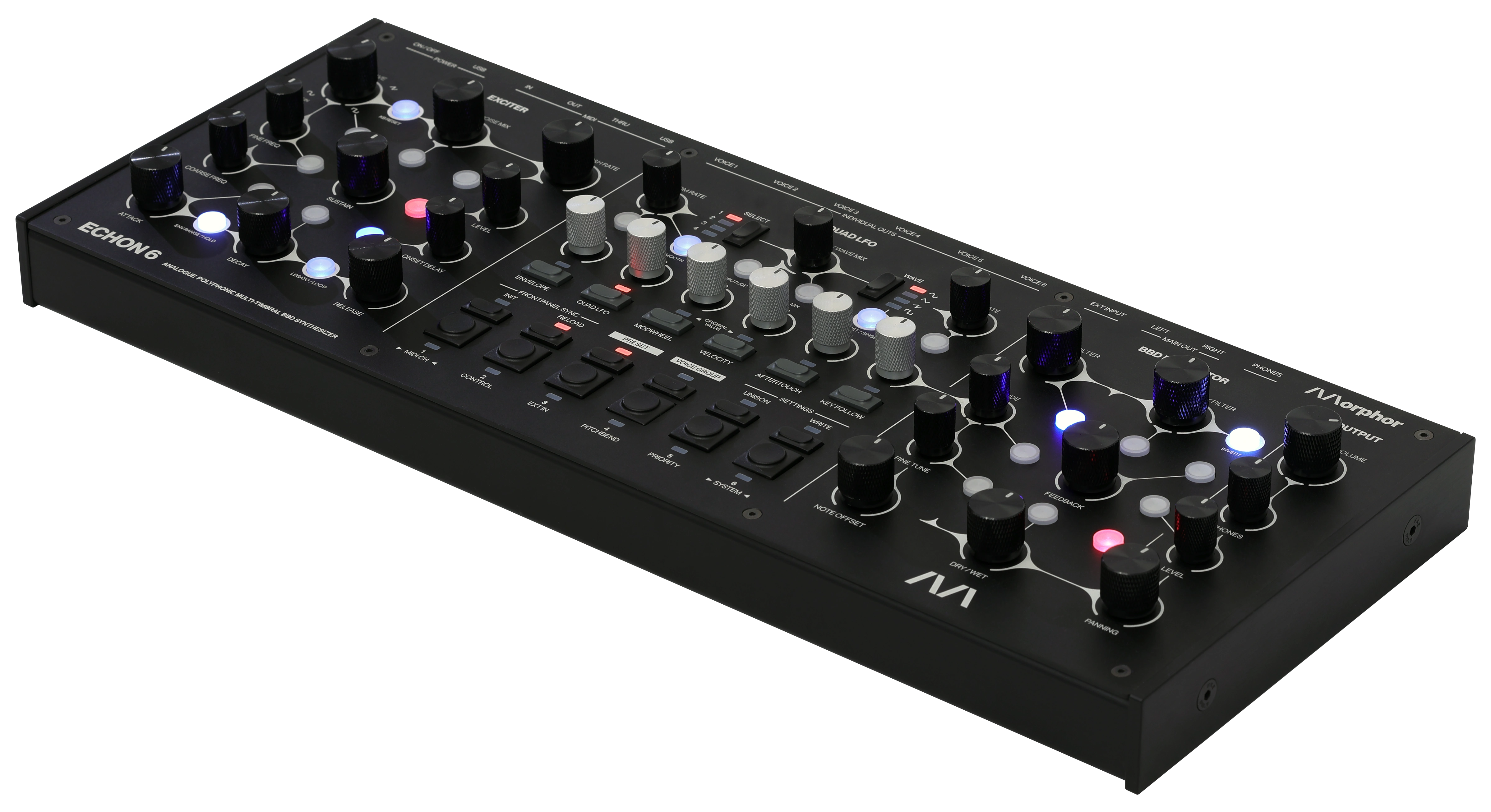

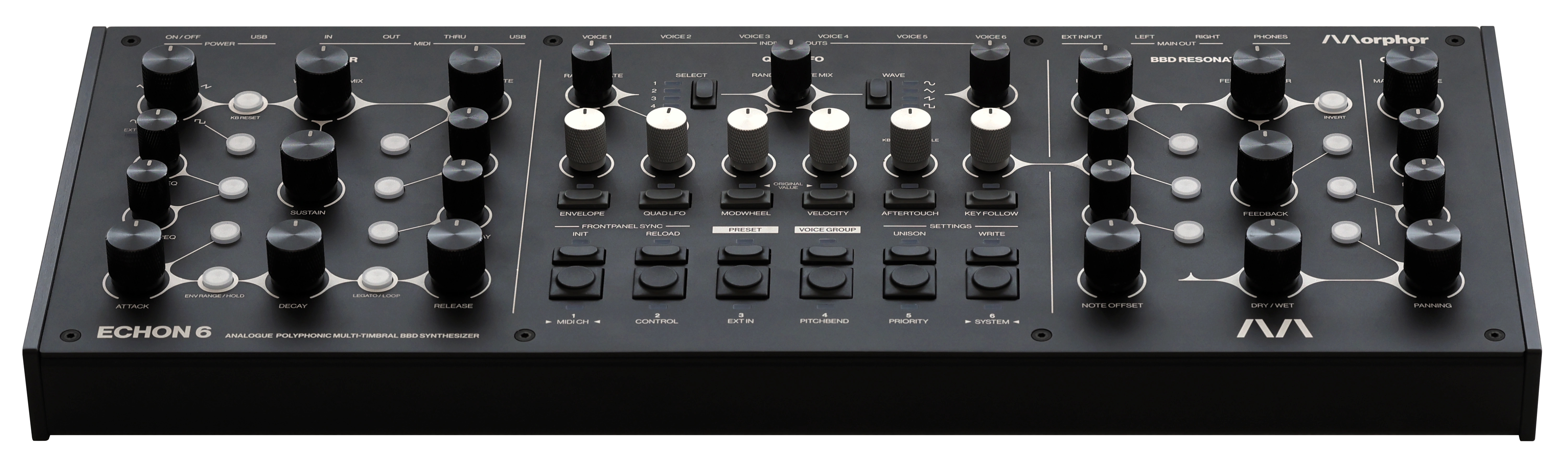

ECHON 6

6 Voice Analogue Polyphonic BBD Synthesizer

• Feedback System
• 6-Part Multitimbral
• Full Analogue Audio Path
• Extensive Modulation Matrix (9 sources × 32 destinations)
• Custom Voice Grouping (up to 6 voice groups with individual settings, modulations, and/or MIDI)
• Comprehensive Unison Control
• Global Modulation Attenuverters
• Tabletop, 19″ Rack-Compatible, and VESA Mountable
• 6× Full Analogue BBD Resonators

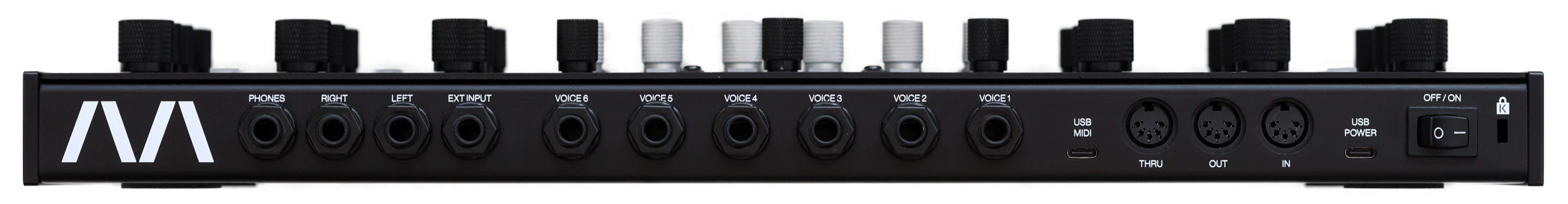

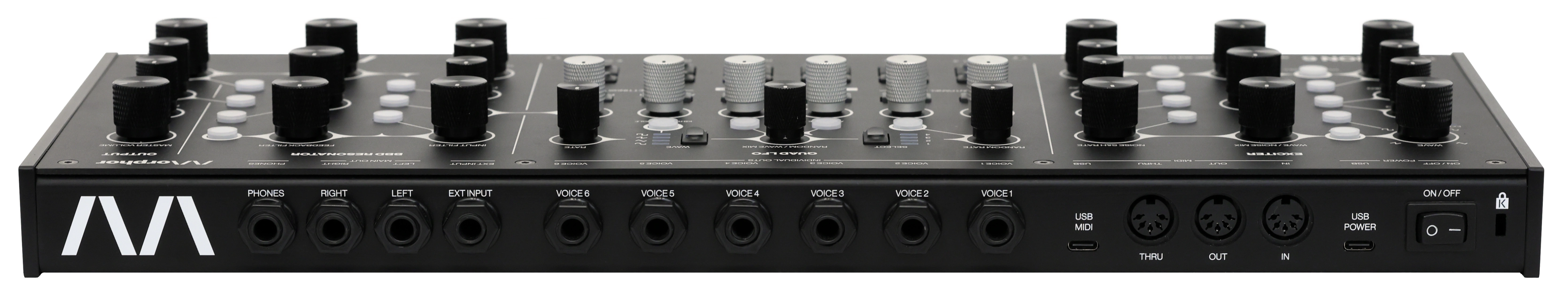

• 2× 1/4″ Jack Main Outputs (L/R)
• 6× 1/4″ Mono Voice Outputs
• 1× 1/4″ Stereo Jack Headphone Output
• External Input
• DIN MIDI In/Out/Thru Ports
• USB-C MIDI (class-compliant device, no bus power)
• 216 Presets
• Kensington Security Slot

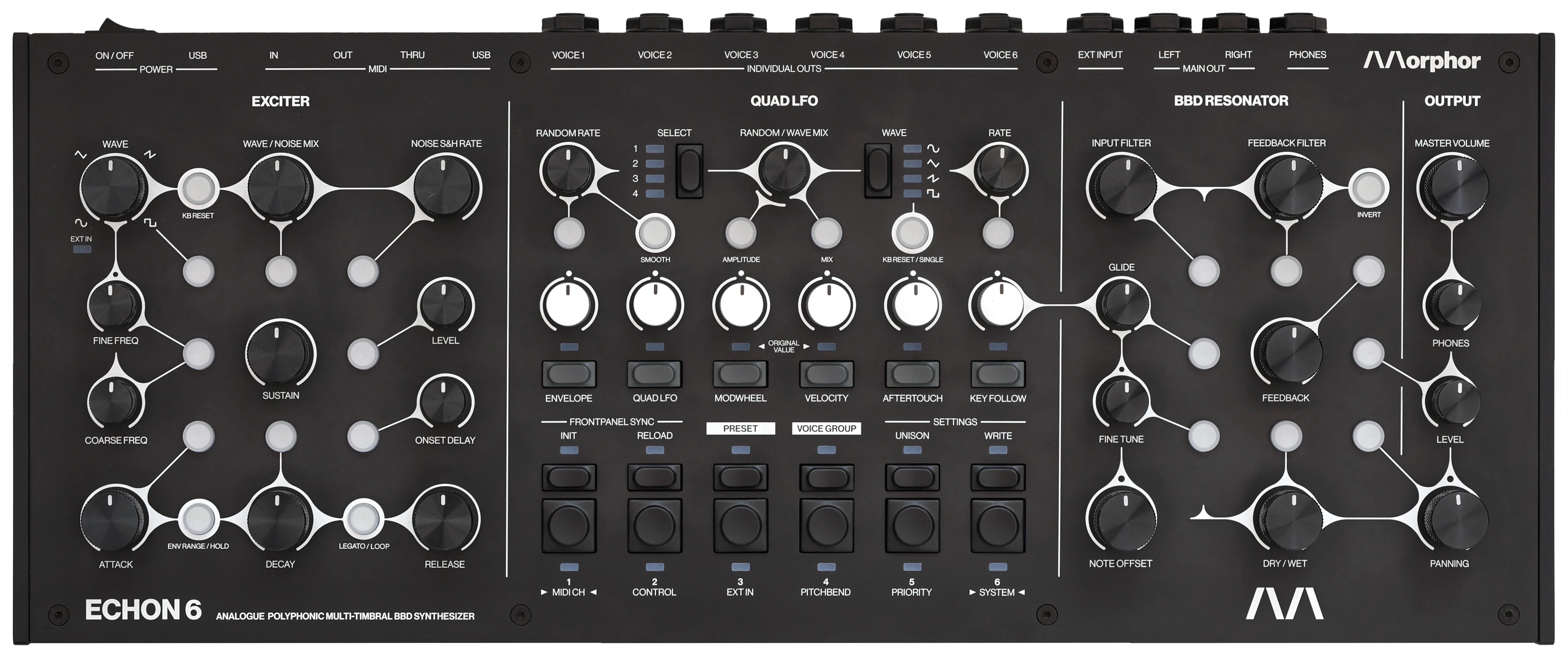

• No Display – 100% Tactile, No Menu Diving

Exciter Section

• Analogue VCO
• External Input
• Analogue S&H Noise Circuit
• Analogue Noise Source
• ADSR Envelope Generator with Onset Delay (0–25 s)
• Exciter Level

BBD Resonator Section

• 12 dB/oct Input Low-Pass Filter (LPF)
• 6 dB/oct Feedback Low-Pass Filter (LPF)
• 1024-Stage BBD
• High-Precision BBD Control Circuitry
• Fine Feedback Control
• Panning
• Dry/Wet Mix
• Voice Level

Modulation Sources

• Envelope Generator
• Quad LFO with Cross-Modulation
• Polyphonic Aftertouch
• Mod Wheel
• Velocity
• Key Follow
